Overview
AP121
The AP121 timber mount anchor is designed to fasten to timber trusses between tiles.
- Fall arrest use
- 15kN rated
- Simple installation
- Low-profile design
- Powder coating option
- Weight: 0.7kg
Specifications
Materials
Profiled stainless steel
Dimensions
384 (L) x 217mm (H)
Eyelet diameter: 58mm
Weight
0.7kg
Fixings
Timber fixing: 12g 40mm type 17 tek screws
Substructure requirements
Minimum timber size: 90 x 35mm F7 grad
Rating
Fall arrest use: 15kN
Compliance
The AP121 timber mount anchor is designed and manufactured in accordance with requirements of Australian Standards AS/NZS 1891.4:2009 and AS 5532:2013.
Testing
Testing and performance based on requirements of Australian Standard AS/NZS5532.2013.
- Dynamic load tested: 15kN
Resultant load on structure: 4.9kN
- Static load tested: 15kN in direction of timber truss
Compliance with loads in other directions requires structure to be certified to withstand 15kN

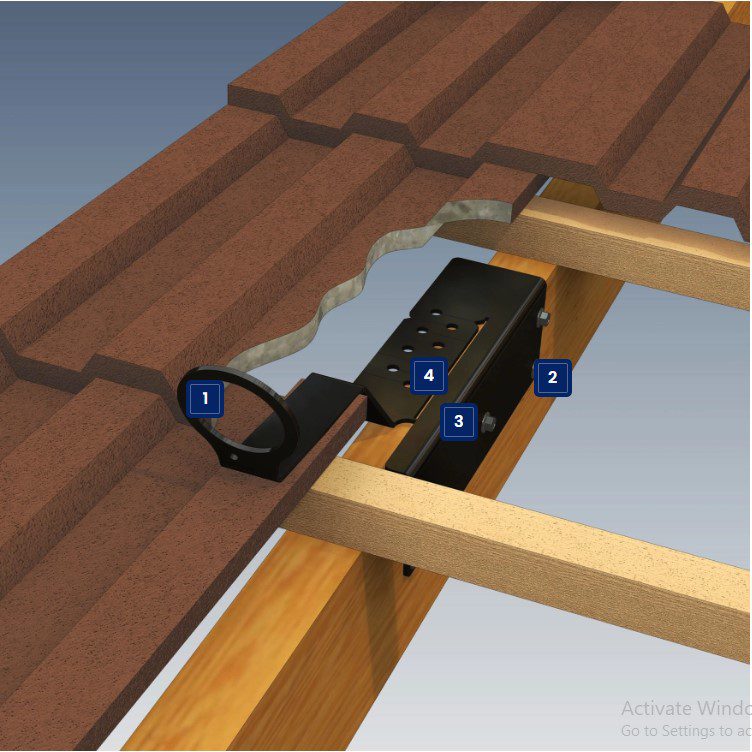

Key features
1. Large attachment ring
Designed for easy snap hook attachment for users
2. Simple installation
Installation is easy and doesn’t require any penetration or interference with roof tiles and no additional seals.
3. Low profile design
Allowing minimal architectural impact, and can be powder coated.
4. Load-absorbing design
Designed to extend and flex in a fall situation, high loads from a fall are dissipated through the anchor.
