Overview

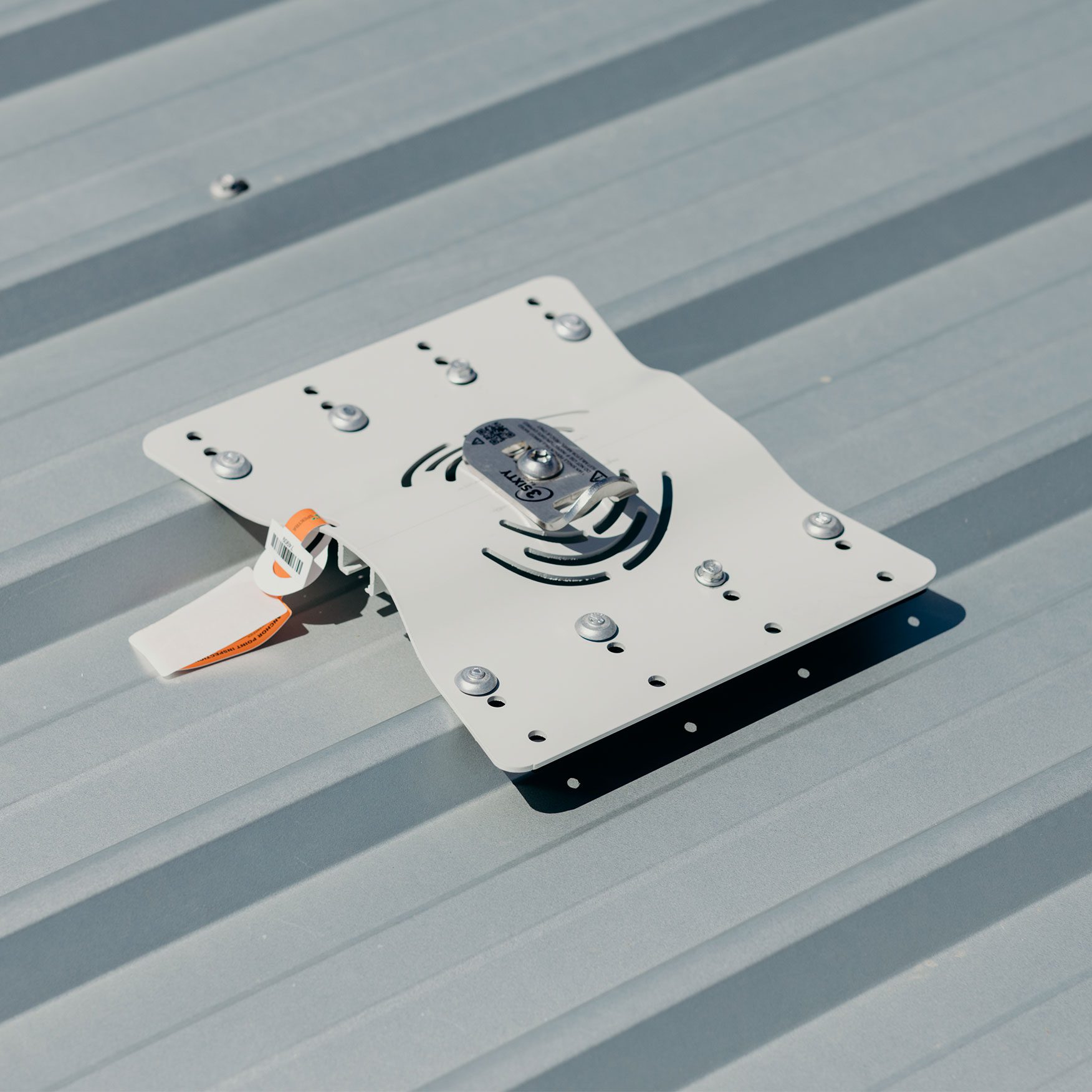

AP135
The AP135 top mount anchor is designed for a simple, rapid installation, the rapid top mount anchor provides effective fall protection when working at heights. The anchor is designed to be installed with rivets only and connected to 2 roof sheets for added strength.
- Fall arrest use
- Rated to 15kN
- Allows connection to 2 roof sheets, increasing anchor redundancy
- Maximum energy absorbing ability
- Rope access rescue ability from activated anchor
- Powder coated finish for dissimilar metal protection
- Weight: .8kg (including fixings)
Specifications
Materials
- Base plate: Hi tensile aluminium
- Powdercoated finish (standard colour – Oyster Matt)
- Swivel eye: 316 stainless steel
Dimensions
- Overall size: 288 (L) x 250mm (W)
- Total height: 48mm
Weight
800g (including fixings)
Fixings
- Metal roof deck screw fixed: qty 8 x 8mm bulb type rivet
- Metal roof deck clip fixed: qty 6 x 8mm bulb type rivet, 2 x 14 self drilling screws into purlin
- Timber structure fixing: qty 6 x 8mm bulb type rivets, 2 x 14 self drilling screws into purlin
Substructure requirements
Support structure integrity, suitability and fixing method to be assessed and determined by a competent person before installation.
Rating
Fall arrest use: 15kN
- User weight limit: 120kg (user and equipment)
- Can be used as a rope access anchorage in the event of an emergency rescue only
Compliance
The AP135 rapid top mount anchor is designed and manufactured to conform to requirements of Australian & New Zealand Standard AS/NZS 5532:2013, AS/NZS ISO 22846, AS/NZS 1891 and relevant statutory OHS Codes of Practice/Guidelines.
Testing
Testing and performance based on requirements of Australian & New Zealand Standard AS/NZS 5532:2013 and AS/NZS 1891
- Dynamic load tested – 15kN
- Static load tested – 15kN

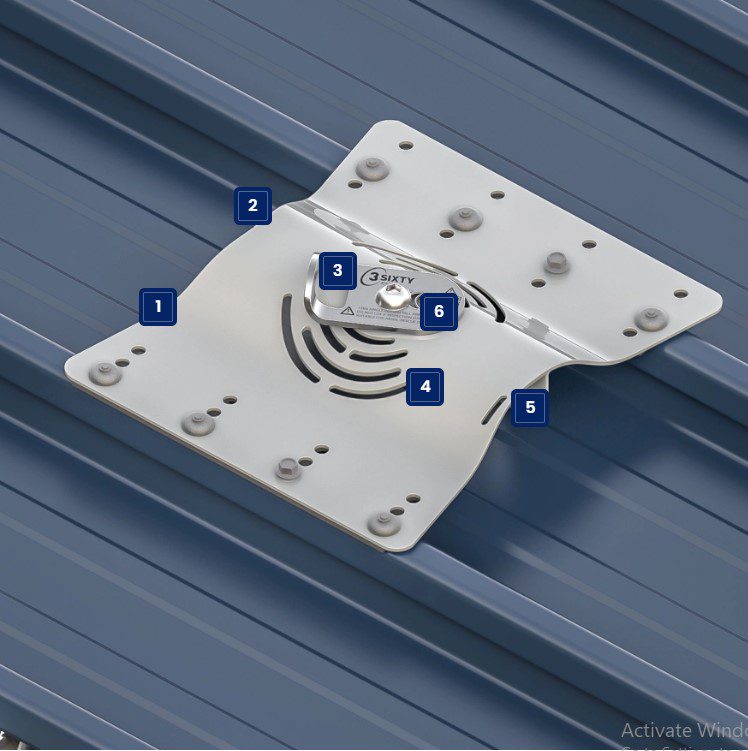

Key features
1. Powder coated finish
Available in four colours, the powder coating eliminates dissimilar metal issues, whilst reducing architectural impact.
2. High tensile aluminium plate
Lightweight construction at only 7006. Simple installation with increased long term durability
3. Anchor attachment eyelet
15kN fall arrest rated. Swivel action ensures no snap hook roll out and has unique energy absorbing functionality.
4. Energy deforming slots
Increases load absorption in a dynamic fall situation by allowing plate flexibility.
5. Label connection
Allows easy and safe attachment of recertification tag.
6. Load absorption tabs
Load tabs are designed to severely reduce energy as loads increase. Provides simple visual inspection of anchor integrity.
