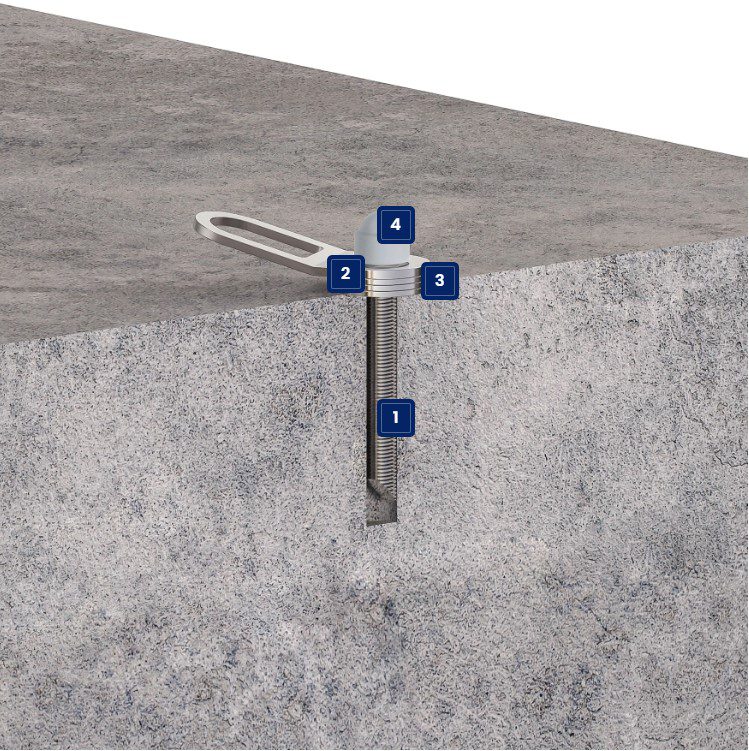

Concrete mount anchor

316 stainless steel

• Eyebolt: M16 x 100mm
• Eyelet: 35mm
• Profiled swivel eye: 125mm (L) x 50mm (W) with a 12mm surface clearance

• AP125A: 0.3kg
• AP125S: 0.5kg

Epoxy adhesive fix

• Drilled hole diameter: 18mm
• Drilled hole depth: 110mm
• Minimum concrete thickness: 150mm
• Minimum concrete edge distance: 200mm
• Minimum anchor spacing: 200mm
• Minimum concrete strength: 20mpa
• Concrete structure integrity, suitability and anchor location to be assessed and determined by a competent person before installation.

Recommended for single person use – 15kN rated

Rope access use: 15kN

Fall arrest use: 15kN – Single person use

• Anchor is to be used in a shear load direction only (pulled at an angle not exceeding 20° to the installed surface).
• No tensile loading for fall arrest or rope access is recommended as per regulatory requirements.
• AP125 Anchor must be used in conjunction with an approved harness and lanyard system incorporating an energy absorber where required.

AP125 Concrete mount anchor is designed and manufactured in accordance with requirements of Australian Standard AS/NZS 1891.4:2009 and relevant statutory WHS Codes of Practice/Guidelines.

Testing and performance based on AS/NZS 1891.4:2009

• Dynamic load test 15kN
• Static load test – 15kN
